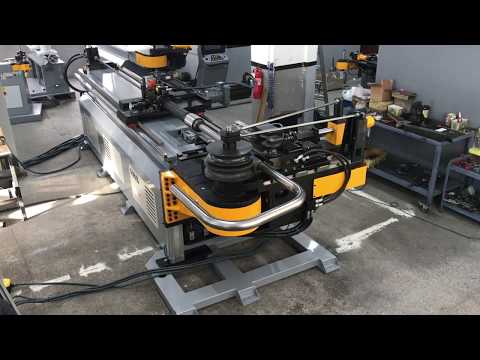

Cnc Tube Bending Machines
Videos
Videos
Cnc Tube Bending Machines
General Details
General Details
Cnc Tube Bending Machines
• Capability of reading 3-D CAD files.
• Program editing as Cartesian Coordinates X,Y,Z and automatic calculation into bending program data Y,B,C.
• With direct gear transmission, fluently bending capability.
• With ergonomic loading height, machine is accordance with health and safety instructions and can avoid the ergonomic problems.
• Improvable program setup settings for optimizing the results of your bending projects, program setup settings that can be developed.
• With energy saving mode, your energy efficiency will be increased, the nature and our future can be protected.
• Inverter control system, a new generation of precision bending system, can help to optimally actualize your bending project.
• User-friendly, easy and quick to learn interface which allows you to quickly start the new projects.
• Controller industrial computer with big touch screen.
• Fast and accurate bending with minimal friction with the help of Linear Guide.
• Easy to understand and solve the problems with the help of end user error messages, it will help to keep your business on running.
• Quality bending with wiper, ball mandrel and other systems.
Cnc-32 Series
Cnc-32 Series
Cnc Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø32 mm x 2 mm |
|
Max. Center Line Radius |
: 200 |
|
Max. Bending Angle |
: 190 |
|
Max. Tube Length |
: 2500 |
|
Max. Feeding Length With Mandrel (mm) |
: 3600 |
|
Bending Speed (°/sec) |
: 147 |
|
Feeding Speed (mm/sec) |
: 1~815 |
|
Turning Speed (°/sec) |
: 450 |
|
Max. Pressure |
: 160 |
|
Total Power (3 Axis) |
: 12 Kw |
|
Total Power (4 Axis) |
: 12.75 Kw |
|
Total Power (5 Axis) |
: 17 Kw |
Cnc-38 Series
Cnc-38 Series
Cnc Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø38 mm x 2 mm |
|
Max. Center Line Radius |
: 200 |
|
Max. Bending Angle |
: 190 |
|
Max. Tube Length |
: 2500 |
|
Max. Feeding Length With Mandrel (mm) |
: 3600 |
|
Bending Speed (°/sec) |
: 142 |
|
Feeding Speed (mm/sec) |
: 1~814 |
|
Turning Speed (°/sec) |
: 450 |
|
Max. Pressure |
: 160 |
|
Total Power (3 Axis) |
: 13 Kw |
|
Total Power (4 Axis) |
: 13.75 Kw |
|
Total Power (5 Axis) |
: 19 Kw |
Cnc-51 Series
Cnc-51 Series
Cnc Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø51 mm x 3 mm |
|
Max. Center Line Radius |
: 220 |
|
Max. Bending Angle |
: 190 |
|
Max. Tube Length |
: 2500 |
|
Max. Feeding Length With Mandrel (mm) |
: 3700 |
|
Bending Speed (°/sec) |
: 120 |
|
Feeding Speed (mm/sec) |
: 1~800 |
|
Turning Speed (°/sec) |
: 200 |
|
Max. Pressure |
: 160 |
|
Total Power (3 Axis) |
: 15.25 Kw |
|
Total Power (4 Axis) |
: 16 Kw |
|
Total Power (5 Axis) |
: 20 Kw |
Cnc-60 Series
Cnc-60 Series
Cnc Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø60 mm x 3 mm |
|
Max. Center Line Radius |
: 220 |
|
Max. Bending Angle |
: 190 |
|
Max. Tube Length |
: 2500 |
|
Max. Feeding Length With Mandrel (mm) |
: 3700 |
|
Bending Speed (°/sec) |
: 80 |
|
Feeding Speed (mm/sec) |
: 1~800 |
|
Turning Speed (°/sec) |
: 150 |
|
Max. Pressure |
: 160 |
|
Total Power (3 Axis) |
: 17.25 Kw |
|
Total Power (4 Axis) |
: 18 Kw |
|
Total Power (5 Axis) |
: 24 Kw |
Cnc-76 Series
Cnc-76 Series
Cnc Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø76 mm x 4 mm |
|
Max. Center Line Radius |
: 250 |
|
Max. Bending Angle |
: 190 |
|
Max. Tube Length |
: 3000 |
|
Max. Feeding Length With Mandrel (mm) |
: 4400 |
|
Bending Speed (°/sec) |
: 70 |
|
Feeding Speed (mm/sec) |
: 1~800 |
|
Turning Speed (°/sec) |
: 150 |
|
Max. Pressure |
: 160 |
|
Total Power (3 Axis) |
: 25.75 Kw |
|
Total Power (4 Axis) |
: 31.5 Kw |
|
Total Power (5 Axis) |
: 36 Kw |
Cnc-90 Series
Cnc-90 Series
Cnc Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø90 mm x 4 mm |
|
Max. Center Line Radius |
: 250 |
|
Max. Bending Angle |
: 190 |
|
Max. Tube Length |
: 3000 |
|
Max. Feeding Length With Mandrel (mm) |
: 4400 |
|
Bending Speed (°/sec) |
: 35 |
|
Feeding Speed (mm/sec) |
: 1~600 |
|
Turning Speed (°/sec) |
: 100 |
|
Max. Pressure |
: 160 |
|
Total Power (3 Axis) |
: 35.5 Kw |
|
Total Power (4 Axis) |
: 37 Kw |
|
Total Power (5 Axis) |
: 49 Kw |
