Hydraulic Tube Bending Machines
Videos
Videos
Hydraulic Tube Bending Machines
General Details
General Details
Hydraulic Tube Bending Machines
|
Genaral Details |
|
NC control. |
|
DDT Direct Gear Transmission. |
|
Touch screen with different language. |
|
Clamp die / Pressure die by hydraulic. |
|
Wiper die block. |
|
Automatic hydraulic mandrel extraction. |
|
Sequentially adjustable flip stops. |
|
Foot pedal control. |
|
Choose auto / Manuel mod. |
|
I/O list – Show error messages. |
|
No14 pcs. Bend |
|
Program memory 999 pcs. |
|
One set standard tooling. |
|
Choose different mode for kind of bend. |
|
Energy – saving mode. |
Dmh-32-Nc
Dmh-32-Nc
Hydraulic Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø32 mm x 2 mm |
|
Max. Center Line Radius |
: 250 mm |
|
Max. Bending Angle |
: 190° |
|
Max. Tube Length |
: 1910 mm |
|
Bending Speed |
: 78°/s |
|
Max. Pressure |
: 160 kg / cm² |
|
Total Power |
: 5.2 kw |

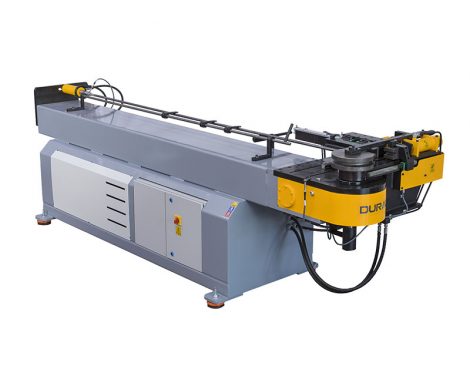

Dmh-51-Nc
Dmh-51-Nc
Hydraulic Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø51 mm x 3 mm |
|
Max. Center Line Radius |
: 250 mm |
|
Max. Bending Angle |
: 190° |
|
Max. Tube Length |
: 3060 mm |
|
Bending Speed |
: 42°/s |
|
Max. Pressure |
: 160 kg / cm² |
|
Total Power |
: 9.5 kw |
Dmh-60-Nc
Dmh-60-Nc
Hydraulic Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø60 mm x 3 mm |
|
Max. Center Line Radius |
: 250 mm |
|
Max. Bending Angle |
: 190° |
|
Max. Tube Length |
: 3060 mm |
|
Bending Speed |
: 42°/s |
|
Max. Pressure |
: 160 kg / cm² |
|
Total Power |
: 11.5 kw |
Dmh-76-Nc
Dmh-76-Nc
Hydraulic Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø76 mm x 4 mm |
|
Max. Center Line Radius |
: 250 mm |
|
Max. Bending Angle |
: 190° |
|
Max. Tube Length |
: 3060 mm |
|
Bending Speed |
: 42°/s |
|
Max. Pressure |
: 160 kg / cm² |
|
Total Power |
: 22.5 kw |
Dmh-90-Nc
Dmh-90-Nc
Hydraulic Tube Bending Machines
|
Technical Details |
|
|
Max. Tube Diameter |
: Ø90 mm x 4 mm |
|
Max. Center Line Radius |
: 250 mm |
|
Max. Bending Angle |
: 190° |
|
Max. Tube Length |
: 3060 mm |
|
Bending Speed |
: 21°/s |
|
Max. Pressure |
: 160 kg / cm² |
|
Total Power |
: 29.5 kw |
