NC control that just works
PLC/HMI interface, multi-language touchscreen, 999 program memory and up to 14 bends per program, with direct bend-angle entry.
Atlas B product overview
Reliable hydraulic mandrel bending, without the CNC price
NC controlled. Fully hydraulic. Built to just work.
Not every job needs a full CNC setup. A lot of pipe bending work—industrial fabrication, exhaust manufacturing, furniture production, shipyards—can be done perfectly well on a hydraulic pipe bender. That's exactly where the DuralBend Atlas B series sits: NC controlled, fully hydraulic tube bending machines built for workshops that need reliable mandrel bending at a sensible price.
We've sold hydraulic pipe benders for years and the feedback is always the same—they just work, day in and day out, which is exactly what you want on a busy production floor.
- Atlas B range11 Models
- Capacity rangeØ32–Ø170 mm
- Max. bending angleUp to 190°
- ToolingMandrel, wiper & pressure die standard
What you get
The essentials, done right
Fully hydraulic bending
Clamp die, pressure die and mandrel extraction all run on hydraulic power, with DDT direct gear transmission for smooth, consistent bends.

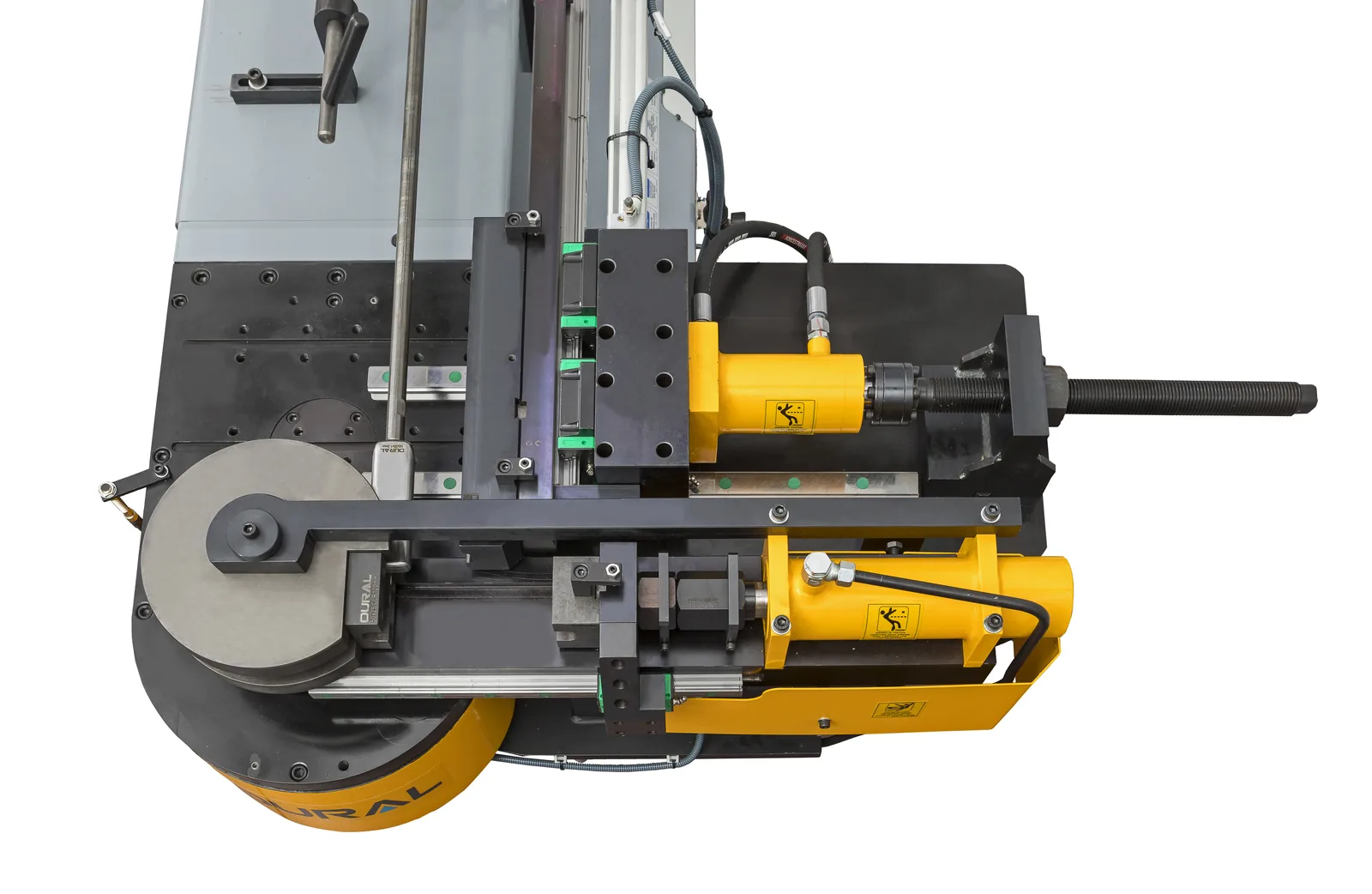

Wiper die as standard
A wiper die block is included as standard—essential for thin-wall tube, where it prevents wrinkles on the inside of the bend.
Quick-change tooling
A quick-change tooling system keeps changeover fast, plus sequentially adjustable flip stops for repeatable tube positioning.
Mandrel bending
Clean Bends in Thin-Wall Tube
The mandrel capability is the key differentiator here. Many cheaper hydraulic machines don't include mandrel support, which limits you to thicker walls and larger radii. The Atlas B series handles thin-wall bending properly, with mandrel, wiper die and pressure die as standard.
Hydraulic exhaust pipe bending, for example, needs a mandrel to get clean bends without collapsing the tube—and these machines handle it without trouble. The same goes for copper pipe and square-tube work: the right tooling does the job.
Full per-model data is in the Models & technical data section below.
NC control system01 02 03 04
Simple, Repeatable Operation
Every Atlas B comes with NC control and a touchscreen panel—enough programmability for repeat production without the complexity of a full CNC system.

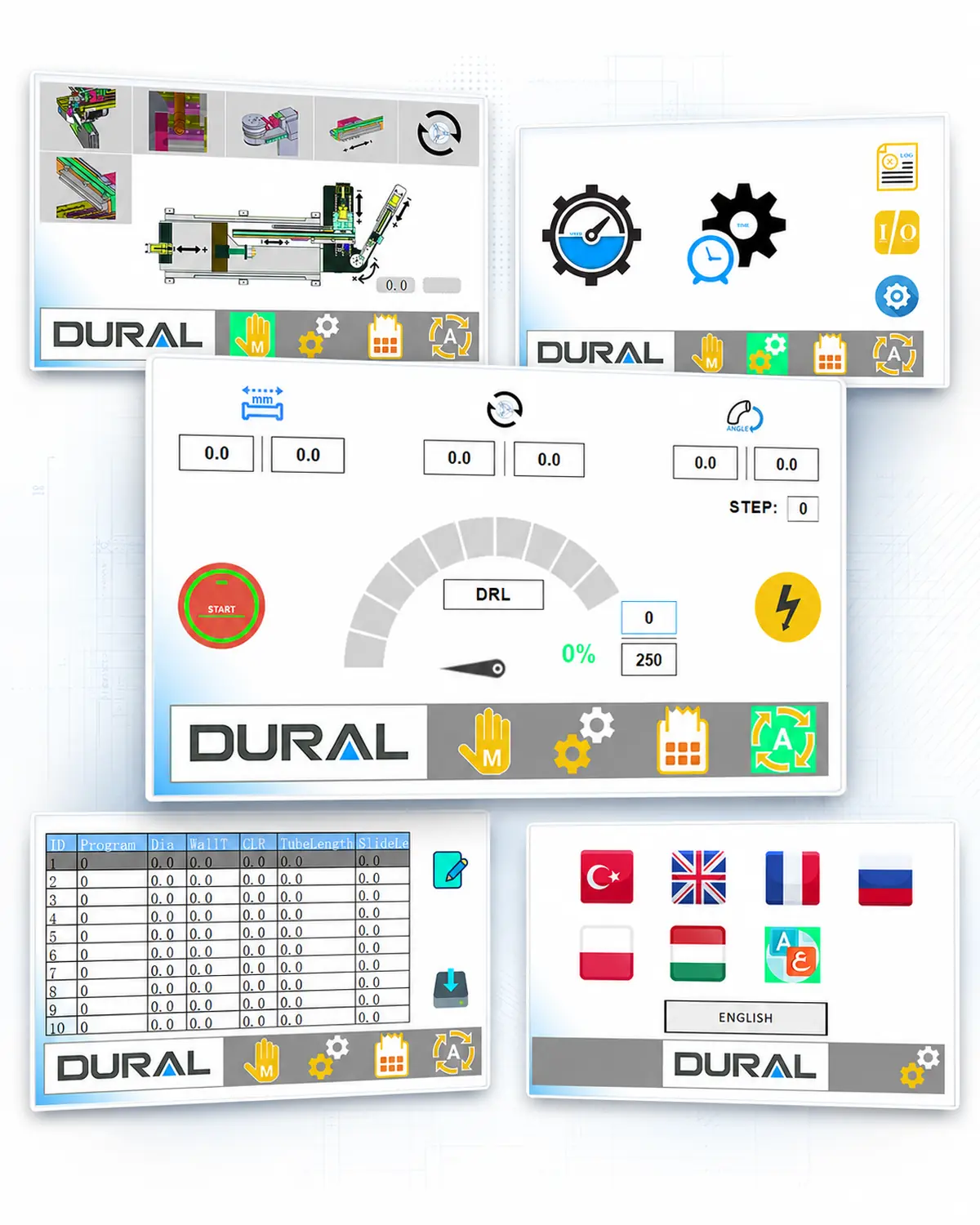

PLC/HMI Touchscreen
A multi-language touchscreen panel with plain-language error messages that tell you what's wrong instead of just flashing a code.
1000-Program Memory
Store up to 1000 programs with up to 14 bends each—more than enough for most repeat production work.
Direct Angle Entry
Enter bend angles directly and choose automatic or manual mode depending on the job.
Foot-Pedal, Hands-Free
Foot pedal control frees the operator's hands during loading and bending, with an energy-saving mode between cycles.
Atlas B in production

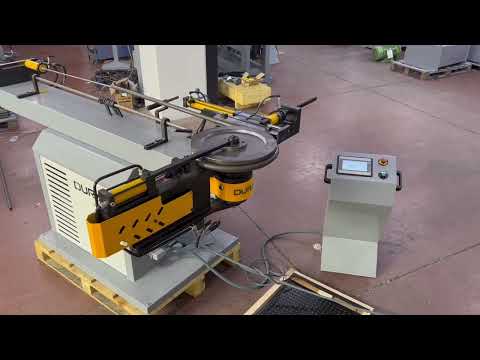

See Atlas B Hydraulic Tube Benders at Work
Watch hydraulic bending applications across the DuralBend Atlas B capacity range.
Who it's for
Industrial-Grade Bending, Without the CNC Price Tag
Any workshop doing mandrel tube bending that doesn't need the complexity of full CNC. If you bend the same parts repeatedly with a handful of programs, a hydraulic pipe bender gives you everything you need at a fraction of the cost.
We see these in exhaust manufacturing, furniture factories, agricultural equipment shops, HVAC fabrication, shipyards and scaffolding production—anywhere that needs an industrial-grade pipe bender without the CNC price tag. Need multi-plane bends? The Atlas BR adds a servo rotation axis, and the Atlas BRF runs the whole cycle automatically.
Component brands
Built with Established Global Components
Core electrical, motion and hydraulic components are selected from established global manufacturers, including Schneider Electric, Yaskawa, Festo, Atos, INA, SICK, Wittenstein and Rossi.
Eleven Atlas B models
One family, Ø32–Ø170 mm
The Atlas B range covers tube diameters from Ø32 mm through Ø170 mm across eleven models. Every model bends up to 190° with mandrel, wiper die and pressure die as standard.
- NC control with PLC/HMI interface
- 999 program memory, up to 14 bends each
- Wiper die block as standard
- Mandrel and pressure die
- Foot pedal control, hands-free operation
- Quick-change tooling system
Technical specifications
Atlas B Model Comparison
Compare capacity, motor power and bending speed across the eleven Atlas B models.
| Model | Tube Diameter Max. | Motor Power | Bending Speed | Max. Bending Angle |
|---|---|---|---|---|
| Atlas B-32 | Ø32 x 2 mm | 5.2 kW | 78 °/sec | 190° |
| Atlas B-42 | Ø42 x 2.5 mm | on request | on request | 190° |
| Atlas B-51 | Ø51 x 3 mm | 9.5 kW | 42 °/sec | 190° |
| Atlas B-60 | Ø60 x 3 mm | 11.5 kW | 42 °/sec | 190° |
| Atlas B-76 | Ø76 x 4 mm | 22.5 kW | 42 °/sec | 190° |
| Atlas B-90 | Ø90 x 4 mm | 29.5 kW | 21 °/sec | 190° |
| Atlas B-100 | Ø100 mm | on request | on request | 190° |
| Atlas B-114 | Ø114 mm | on request | on request | 190° |
| Atlas B-130 | Ø130 mm | on request | on request | 190° |
| Atlas B-150 | Ø150 mm | on request | on request | 190° |
| Atlas B-170 | Ø170 mm | on request | on request | 190° |
Every model bends up to 190° with mandrel, wiper die and pressure die as standard. Tell us the tube diameter, wall thickness and material you run and we will confirm the exact configuration.
