Internal & external in one pass
Deburrs both the inside and outside edge of the tube end in a single pass, ready to handle, feed or weld.
Yalın product overview
Clean tube ends that don't ruin your downstream tooling
Yalın means "plain, simple"—one job, done right.
This is one of those machines that doesn't get enough attention but causes real problems when you skip the step. Feed a burred tube into a bending machine and the burr damages the mandrel, wears the wiper die faster and shortens tooling life. On the finished part, burrs damage inserts and seals, scratch mating surfaces and make the product look cheap. A quick pass through a deburring machine before bending solves all of that.
The DuralBend Yalın series covers everything from small precision tubing to large structural pipe—three models, two deburring technologies, one job: clean tube ends. Simple to use, simple to maintain.
- Yalın range3 Models
- Diameter rangeØ8–Ø250 mm
- TechnologiesCutter head & wire brush
- Per passInternal + external edge
Why the Yalın
Small machine, big downstream impact
Protects your bending tooling
A burr damages the mandrel, wears the wiper die faster and shortens tooling life. A quick pass is insurance for your bender.
Chip & dust collection
An integrated chip and dust box keeps metal shavings and brush debris off the workbench.
Simple to use and maintain
Compact footprint, well made, and easy to run and service—these machines do one thing and do it right.
Two technologies, one job
Cutter Head or Wire Brush
The Yalın 48 and 60 use rotating cutter heads—actual cutting tools that shave the burr off the inside and outside of the tube end. Fast, precise, and it gives a defined, chamfer-like finish. That's the right approach for small-to-medium diameter tube with consistent wall thickness.
The Yalın 250 uses rotating steel wire brushes instead, polishing the burr off without removing parent material. For large-diameter pipe that's more forgiving on wall-thickness variation and won't over-cut a soft material—on 200–250 mm pipe you don't want a cutter taking a bite out of the end. Same result either way: a tube end that's safe to handle, safe to feed into your bender and ready for assembly.
Per-model data is in the Models & technical data section below.
Three models, two technologies01 02 03
From Precision Tubing to Large Pipe
Yalın 48 — Cutter Head

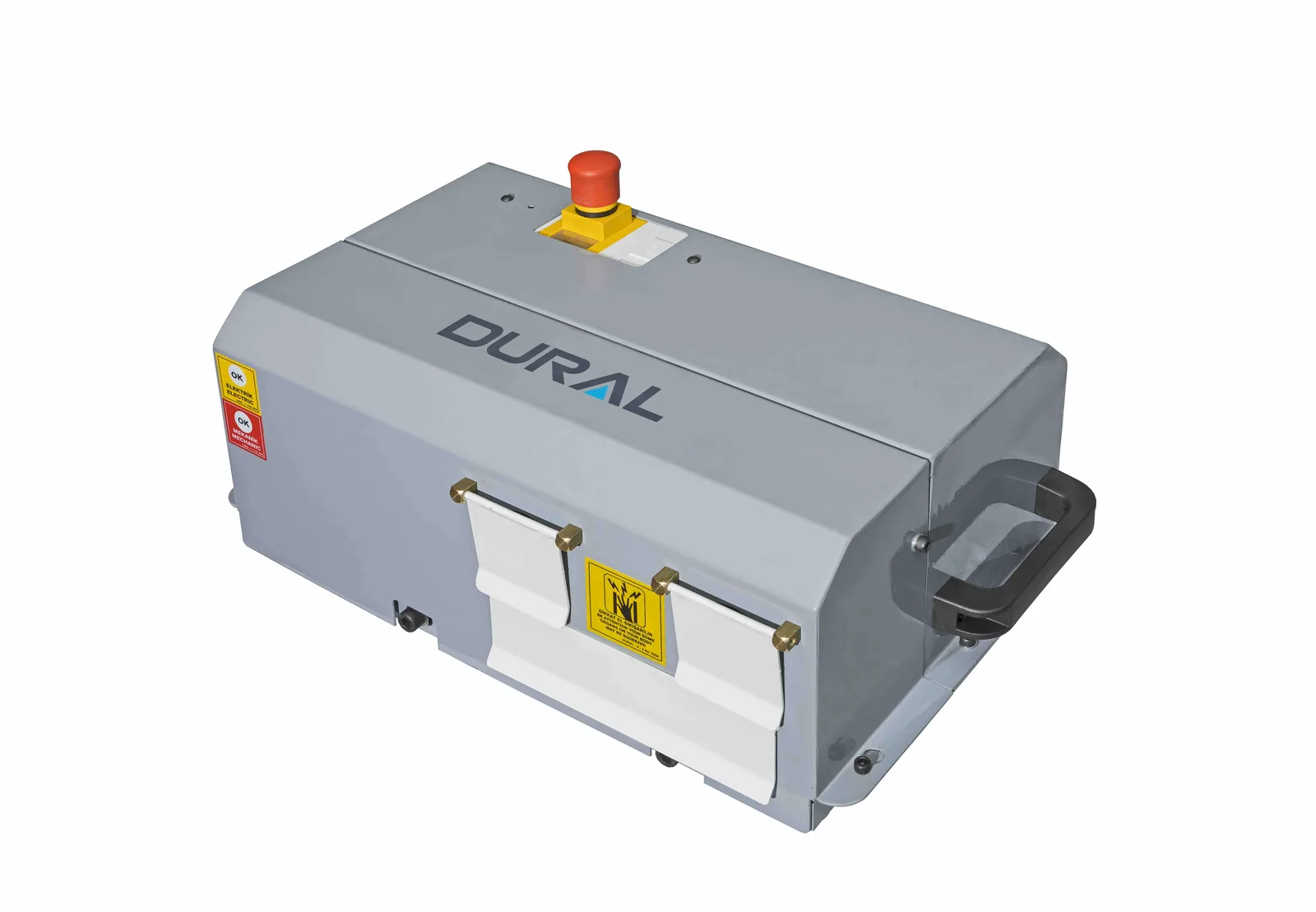

Ø8–48 mm, a compact 20 kg tabletop unit (0.18 kW, 140 rpm) you can move anywhere in the shop. Our most popular model—most tube work falls in this range.
Yalın 60 — Cutter Head

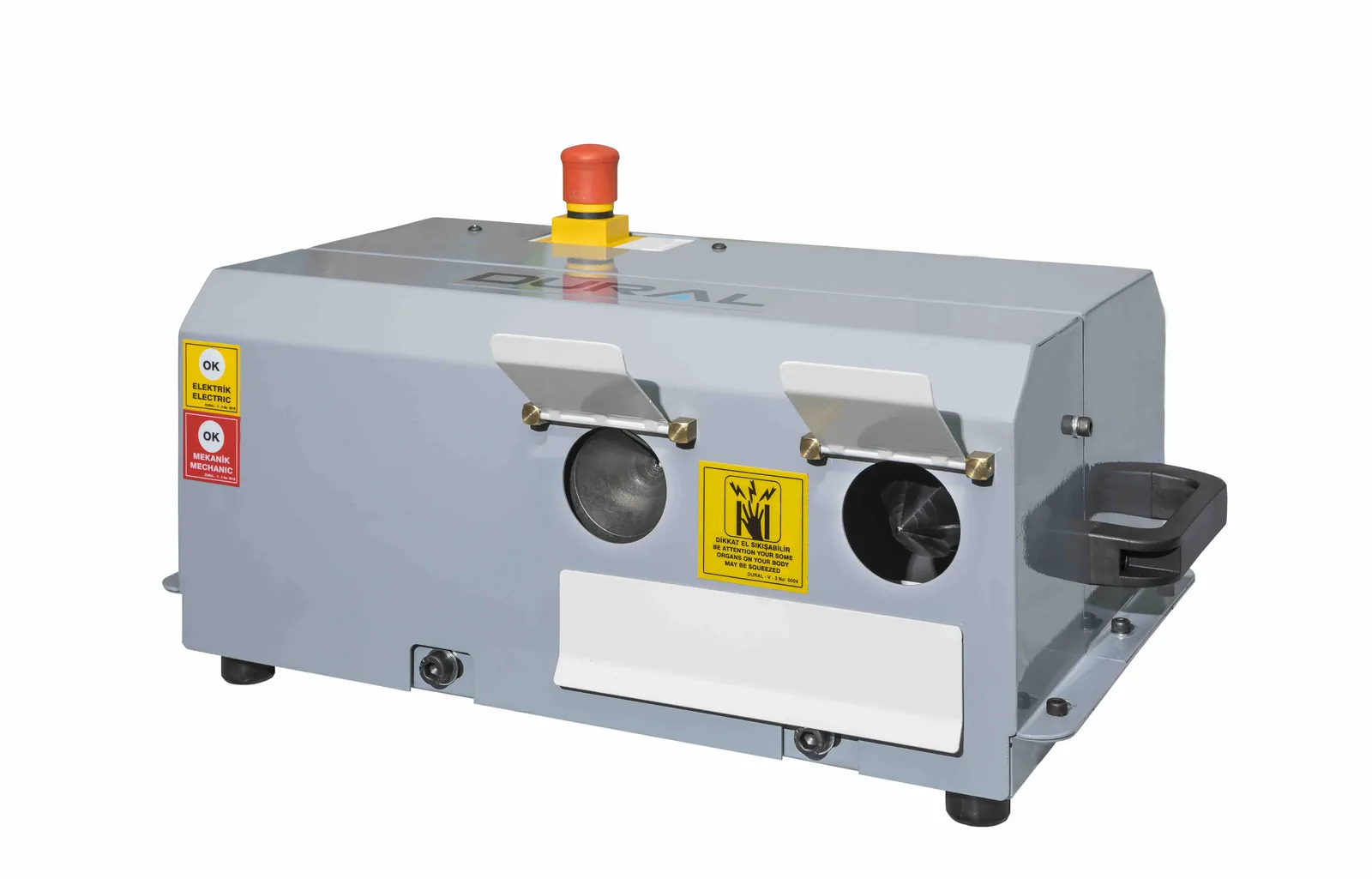

Ø16–60 mm, the same concept with more torque for larger tubes (0.36 kW, 30 kg). Still tabletop, still very portable.
Yalın 250 — Wire Brush
Ø8–250 mm, an upright 35 kg machine for large-diameter pipe in structural, shipyard and heavy industrial work. Few deburring machines reach 250 mm.
Yalın in production
See Yalın Tube Deburring Machines at Work
Watch internal and external tube deburring across the DuralBend Yalın capacity range.
Why bother with a deburring step
Insurance for Your Other Equipment
The best way to think about a deburring machine is as insurance for your other equipment. Its cost is small compared with replacing a damaged mandrel on a bender, or scrapping bent tubes because of surface defects from burrs. Customers who track mandrel replacement before and after adding a Yalın report it pays for itself quickly.
It matters downstream too: cleanly deburred tube ends weld better, seal better against o-rings and gaskets, and don't cut operators' hands during handling. Small detail, big impact.
Component brands
Built with Established Global Components
Core electrical, motion and hydraulic components are selected from established global manufacturers, including Schneider Electric, Yaskawa, Festo, Atos, INA, SICK, Wittenstein and Rossi.
Three Yalın models
Cutter head and wire brush, Ø8 to Ø250 mm
Three models, two deburring technologies. The 48 and 60 use high-speed-steel cutter heads for small-to-medium tube; the 250 uses replaceable wire brushes for large-diameter pipe.
- Internal and external edge in one pass
- Integrated chip and dust collecting box
- High-speed steel cutters (Yalın 48 / 60)
- Replaceable wire brushes (Yalın 250)
- Compact footprint
- Suitable directly before a bending operation
Technical specifications
Yalın Model Comparison
Compare technology, capacity and design across the three Yalın models.
| Yalın 48 | Yalın 60 | Yalın 250 | |
|---|---|---|---|
| Deburring technology | Rotating cutter head | Rotating cutter head | Rotating steel wire brush |
| Tube diameter range | Ø8 – Ø48 mm | Ø16 – Ø60 mm | Ø8 – Ø250 mm |
| Motor power | 0.18 kW | 0.36 kW | on request |
| Tooling speed | 140 rpm | on request | on request |
| Weight | 20 kg | 30 kg | 35 kg |
| Design | Tabletop, portable | Tabletop, portable | Upright |
| Tooling material | High-speed steel cutters | High-speed steel cutters | Replaceable wire brushes |
| Internal & external edge in one pass | Yes | Yes | Yes |
| Chip and dust collection box | Yes | Yes | Yes |
The Yalın 48 and 250 diameter ranges overlap—the difference is the technology, not the capacity. On large or variable-wall pipe the wire brush is the safer choice; the cutter head gives a defined, chamfer-like edge on smaller consistent-wall tube.
