Lower energy consumption
Draws less than a comparable hydraulic machine, cutting running costs across multi-shift production.
EOS product overview
Full-electric CNC tube bending, engineered for total cost of ownership
No hydraulics. No compromises.
If you've been around tube bending long enough, you know how much time and money goes into maintaining hydraulic systems—oil changes, seal replacements, temperature swings affecting tolerances. That's exactly why we developed the EOS CNC Electric Tube Bender series.
The EOS is fully servo-driven and runs on electric axes only. Every movement—feed, rotation, bending, mandrel—is handled by high-torque servo motors. The result is cleaner operation, less downtime and consistent bend accuracy all day long, with substantially lower energy bills after switching from hydraulic.
- DriveAll-electric servo
- Axis configurations3 or 8 axes
- Max. capacity (steel)Ø20 × 1.5 mm
- Total power6 kW
Why go all-electric
The advantages, in four points
No hydraulic oil
Zero fluid disposal costs and a cleaner shop floor—no oil to change, no filters, no leak risk.
Quieter operation
Servo motors run cool and quiet; operators notice the lower noise, especially on longer shifts.
Shorter cycle times
Multiple axes move simultaneously, so parts come off the machine faster.
- 01 · Program
Prepare the part in ETU
Import 3D geometry, simulate the full sequence and check for collisions before any material is cut.
- 02 · Position
Absolute servo motion
Absolute encoders on every axis mean no homing at start-up—turn the machine on and it's ready, even after a power outage.
- 03 · Bend
Consistent, compensated bends
Stored material profiles apply spring back compensation automatically for repeatable geometry, job after job.
Precision & repeatability
Absolute Encoders, Zero Homing
Every axis uses absolute encoders, so the machine knows exactly where it is at all times—even after a power outage. There's no homing sequence at start-up: you turn it on and it's ready to go, saving real production hours over a year.
Spring back compensation is built into the controller. If you bend stainless or thin-wall aluminium, you know how tricky spring back can be. The EOS stores material profiles, so you dial in compensation once and recall it for every future job—and the system learns and saves on-the-fly adjustments.
Full technical data for the EOS 20 is in the Technical data section below.
ETU CNC software01 02 03 04 05
Intelligent Software, Effortless Operation

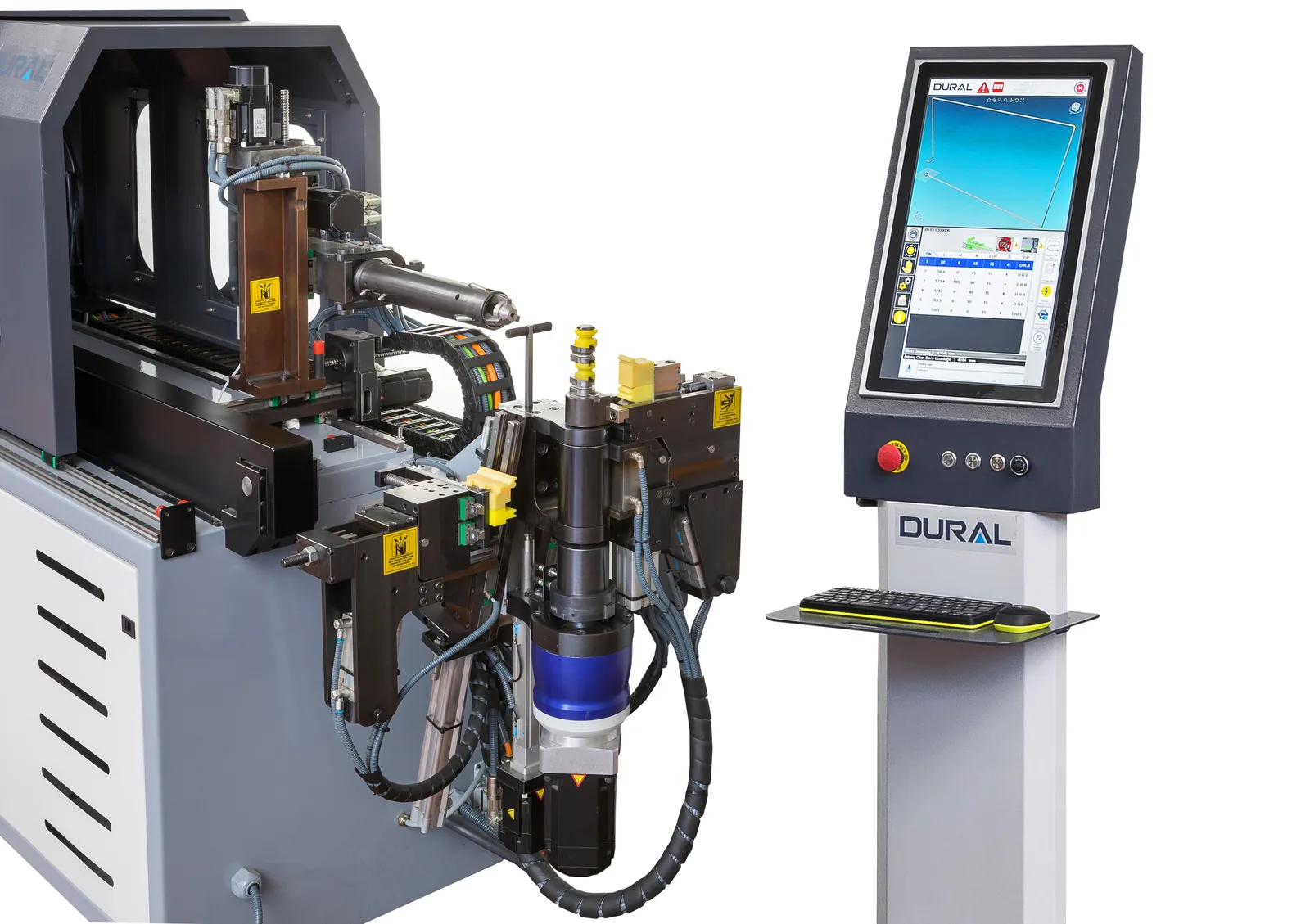

Every EOS machine runs on ETU, our own CNC platform—a large touchscreen with full 3D simulation, so operators can import CAD geometry, verify in simulation and save unlimited programs.
3D Simulation with Collision Detection
Visualise the entire bending process before production; the system flags interference between tube, tooling and machine to prevent costly errors and damage.
Program Editor with 3D Preview
An integrated 3D preview shows L, R, A, CLR and stack parameters for each bend; adjust spring back, mandrel retraction and elongation in real time.
AI-Powered Diagnostics
The built-in AI assistant analyses error conditions, identifies probable causes and suggests corrective actions automatically—reducing downtime significantly.
3D STEP File Conversion
Import STEP files directly; the software extracts L, R, A and bend radius values, builds a 3D preview and calculates tube length for fast verification.
XYZ to LRA Conversion
Convert XYZ coordinate data into LRA bending parameters with CW/CCW direction logic and a live 3D preview, reducing programming errors.
EOS in production
See EOS Full-Electric Tube Benders at Work
Watch full-electric bending, left & right bending and automated production lines on DuralBend EOS machines.
Build & configuration
Heavy-Duty Frame, Configured Around Your Parts
The frame is heavy-duty steel with precision ball-screws on every axis, so geometric accuracy holds up under continuous production. The EOS platform is configured around the part family you actually run—tooling packages are available for left-right bending, variable radius and push-bending setups.
Need automation? Options include automatic loaders and unloading systems, barcode-driven part selection and Industry 4.0 connectivity for data logging and OEE tracking. Every EOS is designed and built in-house—casting, machining, electrical assembly and calibration, all under one roof.
Component brands
Built with Established Global Components
Core electrical, motion and hydraulic components are selected from established global manufacturers, including Schneider Electric, Yaskawa, Festo, Atos, INA, SICK, Wittenstein and Rossi.
EOS 20 specifications
Technical data
The figures below are for the EOS 20 (MR L&R) configuration.
- CNC all-electric tube bender, 3 or 8 axes
- PC control over EtherCAT
- 21.5" PC touchscreen with 3D simulation
- AI-powered error diagnostics
- Collision detection (crash test in simulation)
- Spring back calculation and correction
Technical specifications
EOS 20 Technical Data
Standard capacities for the EOS 20 (MR L&R) configuration.
| Parameter | EOS 20 (MR L&R) |
|---|---|
| Max. Capacity Steel Tube | Ø20 x 1.5 mm |
| Max. Capacity Stainless Steel Tube | Ø16 x 1 mm |
| Square Section | 10 x 1.5 mm |
| Section Module | 0.3 cm³ |
| Max. Centre Line Radius | 40 mm |
| Usable Tube Length — with Collet Edge | 1200 mm |
| Usable Tube Length — with Mandrel | 2000 mm |
| Usable Tube Length — without Mandrel | Unlimited |
| Max. Bending Speed | 420 °/sec |
| Max. Feeding Speed | 1600 mm/sec |
| Max. Rotation Speed | 2880 °/sec |
| Max. Bending Angle | 190° |
| Number of Stored Programs | Unlimited |
| Number of Bends per Program | Unlimited |
| Total Power | 6 kW |
| Max. Air Pressure | 6 bar |
| Bending Direction (Right & Left model) | CW and CCW |
| Bending Drive | Servo motor |
Other capacities are built to order—send us your part drawing or a sample and our engineering team will confirm the right specification.
