Both ends in one pass
Symmetrical parts—chair frames, handlebars, exhaust components—are bent at both ends simultaneously. No flipping, no re-clamping, fewer errors.
Gemini product overview
Both ends in one pass—double-head bending since 2008
Once you use a twin-head bender, single-head feels slow.
Once you start using a double-head pipe bending machine, going back to a standard single-head setup feels painfully slow. A twin-head tube bender cuts cycle times dramatically compared with a conventional mandrel machine, because both ends of a symmetrical part are bent in the same pass instead of one after the other. That isn't a marketing claim—it's what our customers report from the shop floor.
DuralBend has built double-head pipe bending machines since 2008. The current Gemini series is the result of all those years of refinement.
- Gemini range3 Models
- Max. tube capacityØ38 × 2 mm
- Max. bending angle185°
- Tubes per cycleUp to 4 (B38 / BF38)
Why go double head
Symmetrical parts, half the handling
Up to four tubes at once
The B38 and BF38 bend up to four small-diameter tubes in a single cycle instead of one at a time on a regular machine.
Monoblock frame
A rigid monoblock body keeps geometry stable across long, high-volume production runs.
Quick-change tooling
Quick-change tooling and an energy-saving mode keep the machine productive between jobs.
Multiple tubes per cycle
Up to Four Tubes in One Cycle
The Gemini B38 and BF38 are flexible on tube capacity. In a single cycle they handle one tube at Ø38 × 2 mm, two tubes at Ø25 × 1.5 mm, three tubes at Ø16 × 1.5 mm, or four tubes at Ø13 × 1.5 mm—simultaneously.
Four small-diameter bends in one cycle instead of one at a time: the arithmetic speaks for itself. The CNC BFR38 works with single tubes only, but brings full CNC-level control to the double-head format.
Model-by-model data is in the Models & technical data section below.
Three levels of automation01 02 03
One Format, Three Machines
Each Gemini is aimed at a different production requirement—from a reliable hydraulic workhorse to a full 6-axis CNC twin head.
Gemini B38 — The Workhorse

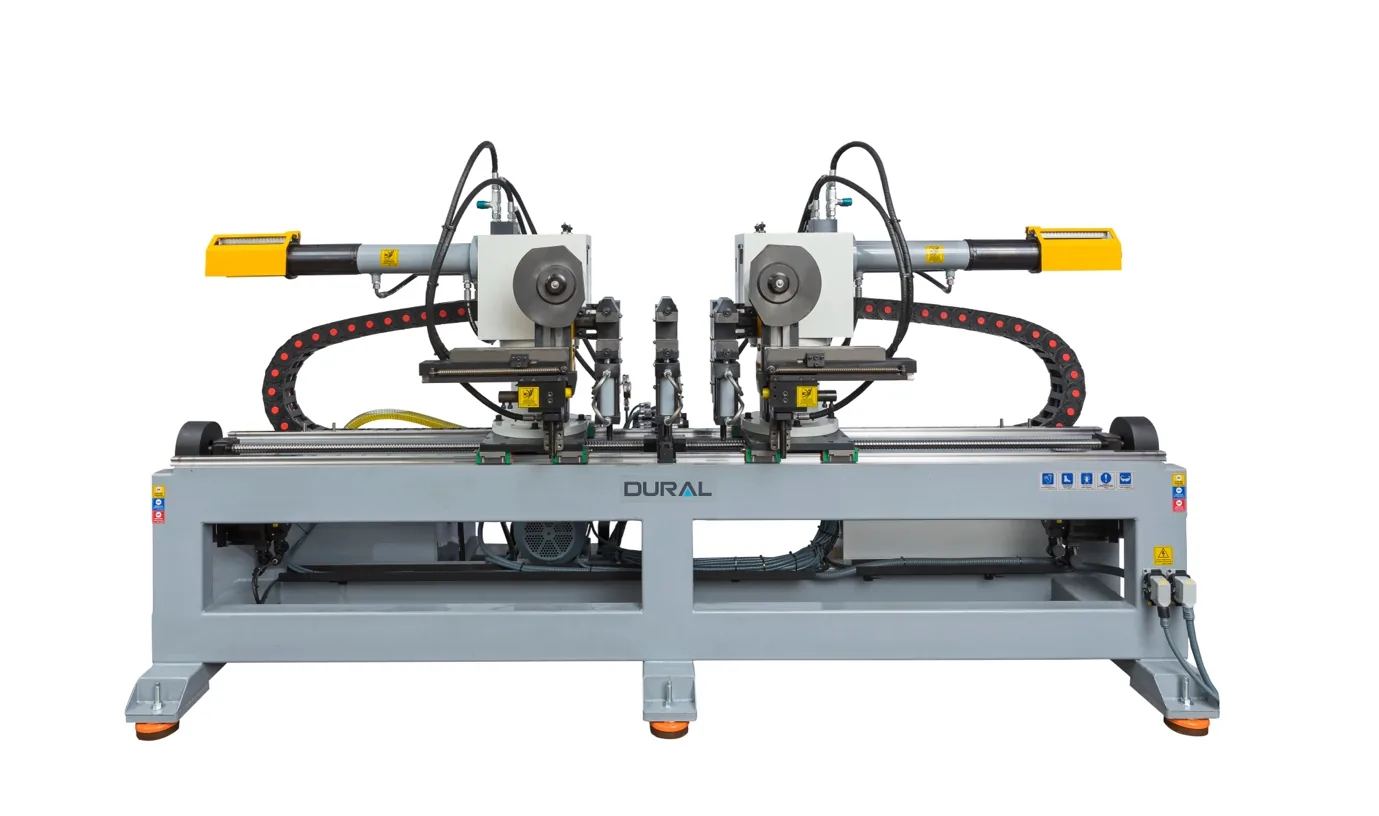

Fully hydraulic with NC control and a monoblock frame; linear guide pressure die, tension arm, magnetic stopper and 7.5 kW power. A straightforward, seriously reliable entry point into twin-head bending.
Gemini BF38 — Semi-Automatic
Same monoblock body and hydraulic bending, plus 2-axis servo control and an inverter-controlled curvature axis for smoother, more repeatable bends. 11.5 kW.
Gemini BFR38 — Full CNC
Fully automatic, 6-axis servo with full CNC software—3D CAD import and simulation. Bends single tubes with CNC-level precision, a rare combination of full CNC and a double-head platform.
Gemini in production
See Gemini Double-Head Tube Benders at Work
Watch double-head bending of furniture frames, bed bases and structural parts on DuralBend Gemini machines.
The case for twin-head
One Pass Instead of Two

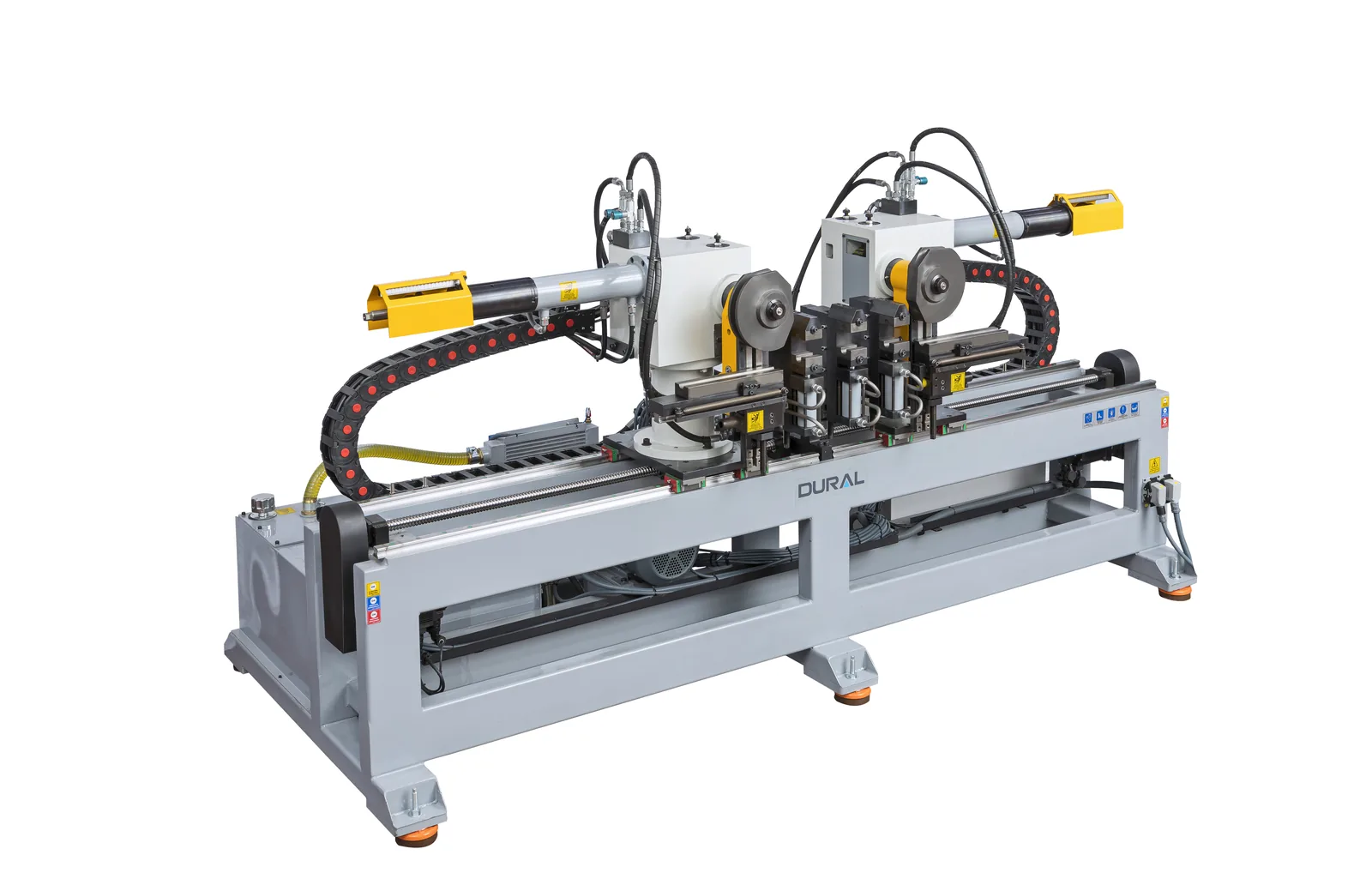

A standard pipe bender works fine for a lot of jobs. But if you're making symmetrical parts—chair frames, handlebars, exhaust components—a double-head bender does it in one pass. No flipping, no re-clamping. Less handling means fewer errors and much faster cycle times.
For high-volume symmetrical bending there is really no argument against a twin-head machine. All three Gemini models come with quick-change tooling, energy-saving mode, a monoblock frame and multi-language touchscreen controls.
Component brands
Built with Established Global Components
Core electrical, motion and hydraulic components are selected from established global manufacturers, including Schneider Electric, Yaskawa, Festo, Atos, INA, SICK, Wittenstein and Rossi.
Three Gemini models
Choose your automation level
All three Gemini models share the Ø38 mm capacity and 185° bending range; they differ in automation—from fully hydraulic NC through semi-automatic servo to full 6-axis CNC.
- Monoblock frame
- Multi-language touchscreen control
- Automatic and manual operating modes
- Linear guide pressure die, tension arm, magnetic stopper
- Quick-change tooling
- Foot pedal option for manual work
Technical specifications
Gemini Model Comparison
Compare the three Gemini models—B38, BF38 and BFR38.
| Gemini B38 | Gemini BF38 | Gemini BFR38 | |
|---|---|---|---|
| Type | Fully hydraulic, NC control | Semi-automatic, 2-axis servo | Fully automatic, 6-axis servo CNC |
| Max. tube capacity | Ø38 x 2 mm | Ø38 x 2 mm | Ø38 x 2 mm |
| Max. bending angle | 185° | 185° | 185° |
| Total power | 7.5 kW | 11.5 kW | on request |
| Multiple tubes per cycle | Up to 4 | Up to 4 | Single tube only |
| Curvature axis | Hydraulic | Inverter controlled | Servo |
| Control | NC, multi-language touchscreen | PLC with NC capability | Full CNC — 3D CAD import and simulation |
| Frame | Monoblock | Monoblock | Monoblock |
| Foot pedal manual mode | Yes | Yes | Yes |
The B38 and BF38 bend up to four tubes per cycle; the BFR38 bends single tubes with full CNC control. Send us your component drawing or a sample frame and we will confirm the right model.
